『FIRE DEFENDER』SERIES

The innovative development of the company’s “Fire Defender” fire product series is made with advanced processing equipment. The inspirative design combined with high-quality vermiculite fire board makes the door core, resulting in more reliable performance, “Fire Defender” has passed BS476 Part22 and BS EN 1634-1: 2004 fire performance test for more than 2 hours.

The fireproof product series not only have international Class A fireproof performance, but also have beautiful shapes and different traditional cultures with modern style visual effects; the surface can be formed by various methods such as parquet, carving and high-pressure offset.

The product is suitable for interior and exterior design; living rooms; stairs and corridors.

FIRE SERIES

『Fire Defender』

``Fire Defender`` Fire rated door is a product developed by Wai Hao Engineering. It is a product innovatively developed and combined with vermiculite slab core and solid wood fire core. It has passed BS EN 1634-1: 2008 30, 60, 120 minutes fire prevention certification. Our products include: luxury fire rated door series, wooden fire rated doors, glass fire rated door with stainless steel frame as well as fire glass windows.
We focus not only on protecting your life, but also on protecting the environment. We have carefully selected the non-asbestos calcium silicate board and vermiculite board due to its characteristics of fire resistance, heat insulation, sound insulation and mildew resistance. Moreover, it is also non-toxic and harmless.
``Fire Defender`` Fire rated door series not only has international Class A fire performance, but also has beautiful shapes and visual effects of different traditional cultures and modern styles. The product is suitable for offices, shopping malls, residences, stairs as well as corridors.

Fire rated door Characteristics

The core of the door adopts vermiculite slab core and solid wood fire core, which has passed BS EN1634-1: 2008 fire rated door certification for 30, 60 and 120 minutes.
Fire strips that are affixed to the door leaf or the frame of the door can exert their fire resistance in the event of a fire so as to close the door gap.
The glass windows installed on the door leaf can be made using iron wire glass or light sheet, which plays a perspective function and increase access safety.
Fire rated doors are equipped with various hardware accessories to choose from.

Product Usage

Fireproof board, decorative fireproof board, fireproof door board, fireproof floor, fireproof ceiling, industrial fireproof, steel fireproof shutter, special vermiculite fireproof parts, etc.

Fire rated door Certificates

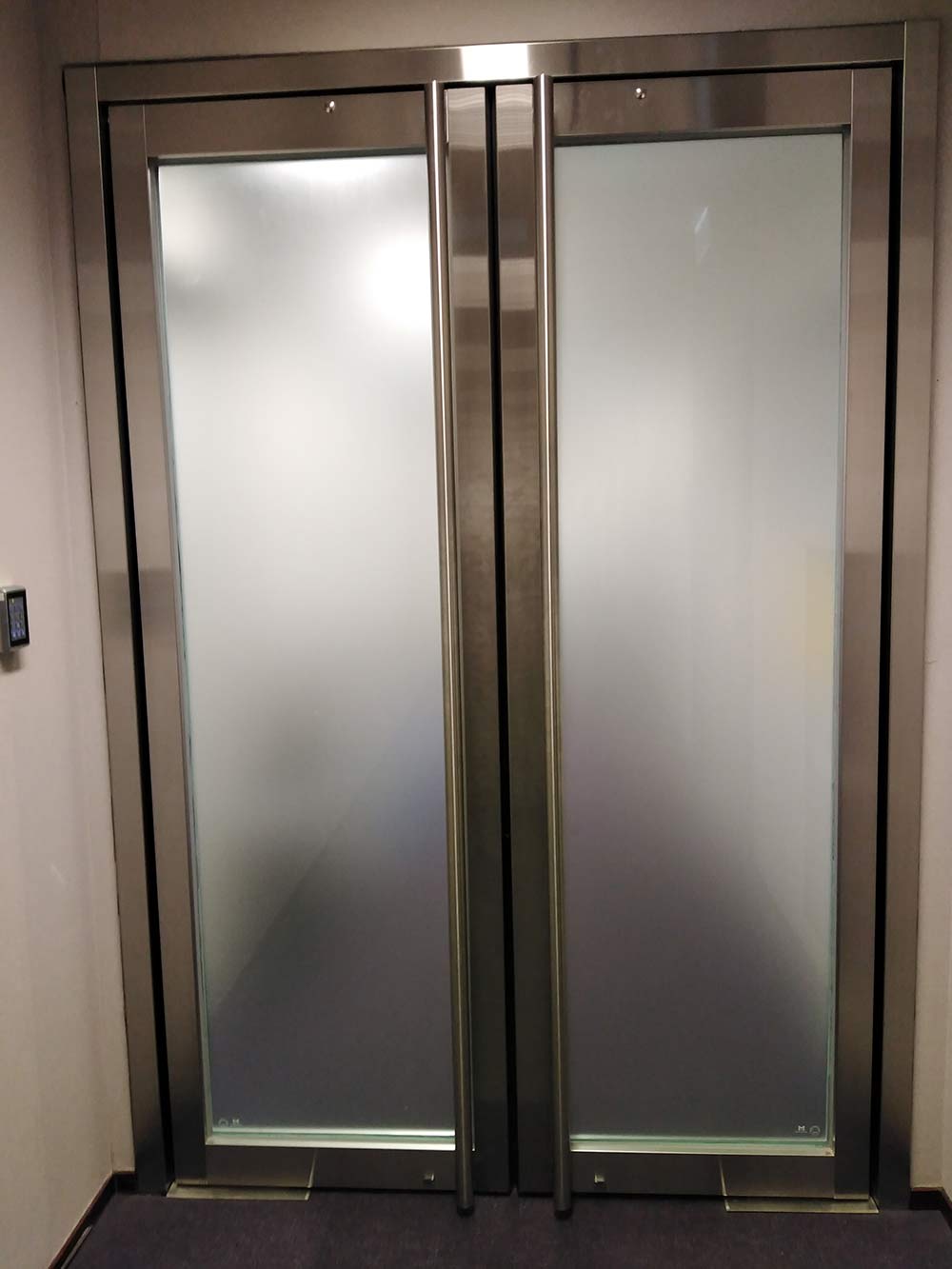

Fireproof glass door / window

Divided into fire insulation type and non-insulation type according to the fire protection category
According to the structure, it can be made into single door / window and double door
According to the opening method, there are two kinds of floor spring, hinge and door closer

Fire glass characteristics

• Fire, heat and sound insulation
• Clear and transparent
• Anti-aging, anti-ultraviolet light
• Meets BS 476: Part 22 safety glass requirements
• Meet the requirements of integrality and thermal insulation
• Light transmission up to 78%
• With sound insulation
• Thin thickness, the thinnest product thickness is 20mm
• Light weight, the lightest product weight is 17kg / m2
• High strength, Class A safety glass in BS6206 standard
• Free choice of colors and patterns
• Easy to use, can be cut with a hand-held glass cutter

Applications include

Fireproof glass door
fireproof glass window (free ruler, valet installation)
Fire wall

Outer glass selection

Transparent glass
Ultra-white glass
Stained glass, such as blue, green, etc.
Frosted glass
Tempered glass

Size range

Maximum size = 2400 mm x 1790 mm
Minimum size = 200 mm x 600 mm

Implementation standards

National Standard: GB 15763.1
British Standard: Bs 476 Part 22
European Standard: BS EN 1634-1:2008

Fireproof glass partition wall

Product type

Divided into fire insulation type and non-insulation type according to the fire protection category

Divided into indoor use and outdoor use according to purpose

According to the structure, there are two types: fixed window/ door and window combination.

Technical performance

Fire resistance level- can be divided into 30 minutes, 60 minutes and 90 minutes according to the fire protection time

Sound insulation and thermal insulation- depending on the performance of the fire-resistant glass used

Anti-aging- if used on exterior walls, the frame should be matched with UV-resistant fire-resistant glass

Door and window frame appearance selection:spray paint, fluorocarbon paint, silk stainless steel, mirror stainless steel, aluminum, titanium gold plate

Door frame appearance selection: spray paint, fluorocarbon paint, silk stainless steel, mirror stainless steel, aluminum, titanium gold plate

Usage

This product is light in structure, light in weight and light in sight. It is widely used in indoor fireproof partition walls of large spaces such as exhibitions, auto shows, stadiums and shopping malls.

*The glass can pass the 5 years of UV environment verification without producing milky white color and bubbles; it can be cut with water jet or diamond wheel cutting machine.

Fire protection doors and windows for large projects:

ONTOLO, Pak Shek Kok. Fire rated doors, movable fire rated windows and Glass Fire rated Wall	Disney Explorers Lodge- Hong Kong Disneyland Resort fire rated doors	Former Central Poloce Station Block 14 2 hours fingerprint-free electroplated stainless steel fire rated doors
Cathay Pacific City, Tung Chung fire rated doors	Hong Kong Jockey Club Happy Valley Clubhouse. Fire rated doors	Mei Foo Sun Chuen Phase 8. Fire rated doors
Regal Airport Hotel Hong Kong. Fire rated doors	Tuen Mun Town Plaza Phase 3. Steel fire eated doors	Wing Warehouse Building. Fire rated doors
Companies Registry , Admiralty. Glass and steel fire rated doors	Cheung Sha Wan Plaza metal cladding fire rated doors	Chi Lin Nunnery customize and installation of fire rated doors
InnoCentre, Tat Chee Avenue fire rated doors	Tai Hing Sports Centre. Glass flush doors and automatic glass sliding doors	Cheung Sha Wan Plaza metal fire rated doors
Lockhart House Block 2, Wan Chai fire rated doors, fire windows, fire panels	Hong Kong Gold Coast Piazza 2 hours fire rated doors	West Park, Tung Chau St, Sham Shui Po. Wooden Doors
ECO Hotel, 101 Wai Yip Street, Kwun Tong fire rated doors and other construction works	Hotel at 179 Prince Edward Rd. Moveable fire rated windows	Hotel Panorama, Fire rated windows
HKU customize and replacement of fire rated doors and furniture	Tseung Kwan O Haven of Hope Hospital replacement of aisle fire rated doors

Engineering records of custom-made and installed fire doors, fire glass doors and fire windows:

Prince of Wales Hospital, Sha Tin Dormitory new fire rated doors construction	Yue Xiu Building, Wan Chai staircase fire rated doors and fire rated glass	Golden Plaza, Prince Edward corridor fire rated doors
Wo Hing Commercial Building,Central new fire rated doors construction	26 Mui Fong Street, Sai Ying Pun staircase fire rated doors and fire rated glass	Wang Fai Industrial Building new fire rated doors construction
4 San Lau Street, Lo Lung Hang new fire rated glass construction	Sing Kong Building, Wan Chai staircase fire rated doors	Amoy Food Limited, Tai Po stainless steel fire rated doors
元帥有限公司, Tai Wan exported fire rated doors	Fung Wah Estate Hiu Fung House,Tai Tam fire rated doors	Shui Tau Tsuen Mansion block 6, Kam Tin fire rated doors
Braemar Court, To Kwa Wan fire rated doors and fire rated windows	Broadwood Twelve, So Kon Po custom made fire rated doors	Marble Garden Phase 2, North Point roof stainless steel doors
27 Tung Ming Street, Kwun Tong staircase fire rated doors	Cheong Wing Mansion, Shek Lei fire rated doors and windows	Far East Factory Building, Kwun Tong fire rated doors
38 Kung Lok Road, Ngau Tau kok fire rated doors	Chung Yuen Building Phase 2, Tai Kok Tsui double fire rated doors	Beauty Mansion, Tsim Sha Tsui fire rated doors
1 Shan Si Street, Lo Lung Hang staircase fire rated doors	21 Luk Ming Street, Ma Tau Kok staircase windows	Bowring Street, Jordan custom made fire rated windows
MCP Central Phase 2, Tseung Kwan O fire rated stainless steel doors	Pennington Street Hotel, Causeway Bay fire rated doors	241 Cheung Sha Wan Road, Sham Shui Po fire rated doors
Hart Avenue, Tsim Sha Tsui fire rated windows	MCP Central Gyujin Shabu Shabu & Sukiyaki Restaurant, Tsueng Kwan O 120 min fire rated doors	Tsuen Wan Abattoir, Tsuen Wan fire rated doors
Tung On Building, Shau Kei Wan fire rated doors	Kwan Sen Mansion, Kwun Tong fire rated doors	Park View Court, Mid- Levels staircase fire rated windows
418 Un Chau Street, Cheung Sha Wan custom made fire rated windows and doors	Parkes Street, Jordan fire rated windows and doors	59-61 Wellington Street, Central custom made fire rated doors and windows
City Centre Building, Wan Chai fire rated windows and doors	Sing Pao Building, Causeway Bay custom made fire rated windows	Kam Wah Building, Yau Ma Tei fire rated doors
Mai Tak Industrial Building, Kwun Tong custom made fire rated doors	Yee Fung Garden, Yuen Long fire rated stainless steel doors	Easey Building, Cheung Sha Wan custom made fire rated doors
City Carden Phase 4, North Point custom made fire rated wooden doors	合時中心, Kowloon Bay fire rated windows, doors and wooden doors	Artland Court, Chai Wan basement fire rated doors
Cheong Fat Factory Building 1/F-9/F fire rated doors	Yee Fung Garden Block A,B podium, Yuen Longfire rated stainless steel doors	Discovery Bay Private Mansion fire rated doors
International Industrial Centre 14/F, Fo Tan fire rated glass doors	East Full Service Lt, Fo Tan fire rated glass and wooden doors	Fat Lee Industrial Building, Kwun Tong fire rated glass windows
Tung On Building, Shau Kei Wan staircase fire rated wooden doors	Kam Hing Building, Kennedy Town wiring, fire board and fire rated doors	21 Perkins Road, Happy Valley fire rated doors
52- 54 Argyle Street 11/F, Mong Kok fire rated doors	Century Industrial Building, Tuen Mun 120 min fire rated fire doors and fire walls construction	Kam Ming Court, Prince Edward dire rated doors
德榮工業中心 3 Tsun Wen Road, Tuen Mun 19/F fire rated glass doors	8 Cheung Fai Road, Tsing Yi staircase fire rated doors	SAGE Madam Ho Sin Hang Home for the Elderly fire rated doors
Mai Hing Industrial Building Block B 3/F fire rated doors	Mercantile Industrial and Warehouse, Kwai Chung 120 min fire rated doors	Focal Industrial Centre Block A fire rated doors
Yuk Ming Engineering Company fire rated glass widows	Guangdong Tour Centre, Causeway Bay 7/F Room D fire rated glass doors	Gold King Industrial Building 11/F fire rated doors
41 Ko Shing Street 1/F, SheungWan fire rated wooden doors	2A Kiang Hsi Street, To Kwa Wan fire rated doors and windows	16- 20 Pokfulam Road fire rated doors
Yik Hon Building, North Point fire rated windows	Vigor Industrial Building, Tsing Yi basement fire rated doors	Wah Wai Industrial Centre, Fo Tan fire rated doors
Yue Hing Building 5/F, Wan Chai fire rated doors	16- 20 Broom Road, Happy Valley fire rated doors and fire boards	Merry Mansion, To Kwa Wan fire rated doors
Golden Garden Industrial Center Phase 3 19/F Room D fire rated doors	Hang Fat Building, Sheung Wan fire rated doors	Golden Garden Industrial Center Phase 3 17/F Room B-C fire rated doors
Ho Shun Lee Building Block 1, 2, Yuen Long fire rated doors	68,68A ,70 Fuk Wing Street, Un Chau fire rated doors	海德樓17-19 Ap Lei Chau Main St fire rated glass windows and doors
Baily Court, Chuk Un fire rated doors	39-41 Argyle Street Room 8A, Mong Kok fire rated doors	How Ming Factory Building, Kwun Tong fire rated windows
Wah Ha Factory Building fire rated doors	1 Hung To Road 22/F, Kwun Tong fire rated doors	Cannon Garden, North Point roof fire rated doors
85 Wing Lok Street, SHeung Wan fire rated doors and windows	安樂樓Block 2 23-29 Fung Tak Road, Chuk Un fire enclosure and wiring works	May Lun Building, Fanling fire rated doors
Kai San Mansion fire rated windows	C- BONS International Centre, Kwun Tong fire rated doors	Yue Fung Mansion, Yuen Long fire rated doors
Concordia Plaza, Tsim Sha Tsui fire rated glass doors	Power Industrial Building, Fo Tan fire rated doors	Wah Wai Industrial Centre, Fo Tan fire rated doors
Nathan Tower, Yau Ma Tei fire rated glass doors	The Garden Company Limited, Sham Tseng 120 min fire rated doors and fire rated glass doors	Citic Tower Parking Lot, Central fire boards
Champion Tower Parking Lot, Central 120 min fire rated stainless steel doors	譽發商業大廈558-560 Nathan Road, Mong kok 120 min fire rated glass and steel doors	Universal Industrial Centre, Fo Tan fire rated doors
將軍澳中心商場 9 Tong Tak Street, Tseung Kwan O fire rated doors	紫珀酒店 6 Knutsford Terrace, Tsim Sha Tsui fire rated glass doors	178- 180 Reclamatiom Street, Yau Ma Tei fire rated doors
Yue Fung Industrial Building, Tsuen Wan fire rated doors	Chiu Tak Mansion, Cheung Sha Wan fire rated doors	康柏花園, Quarry Bay fire rated glass doors
Hung Wai Industrial Building fire rated doors	Villa By The Park, Yuen Long fire rated doors	Fullager Industrial Building fire rated doors
Shanghai Street custom made fire rated windows	昌泰大廈 16 Tai Yau Street, San Po Kong fire improvement works	Houston Centre Shopping Arcade,Tsim Sha Tsui East double leaf fire rated glass doors
Chuang’s London Plaza, Jordan fire rated doors	Belvedere Garden Phase 1, Tsuen Wan fire rated doors	The Pacifica, Cheung Sha Wan fire rated glass doors
Industrial Building in Tung Chung fire rated doors, fire rated glass and steel doors	Kin Bong Builing, North Point fire rated doors	Manrich Court, Wan Chai fire rated doors
Commercial Building on 83 Tai Lin Pai Road, Kwai Chung fire rated doors	35 Wong Chuk Hang Road 120 min fire rated doors	Broadwood Road residential fire rated doors
Central Man Yee Building 2 hours fire rated doors	Two Harbour Square, 180 Wai Yip Street, Kwun Tong fire rated doors

Building maintenance and waterproofing records:

European Asian Bank Building Internal and external wall shovel flooring/ ditch replacement/ roof waterproofing	1 Shan Si Street, To Kwa Wan roof waterproofing project	Wai Wah Centre Block 4 Survey and repair of external wall erecting gondola
Fu Fai Garden Block 3replacement of external wall and air conditioner installation	Marble Garden Block 1waterproof engineering	Fanling Garden Block 6renovation of public staircases
Tonnochy Towers, Block B, Wan Chai refurbishment and waterproofing	Marble Garden Block , 4/F replacement of sewers	Zoroastrian Building, Causeway Bay exterior wallpaper pebbles project
Grand Right Centre, Cameron Road façade repair of marble	Wah Yiu Industrial Centre Room 1219 repair waterproofing works	Beauty Court, Ho Man Tin flooring works and platform waterproofing works
Mai Hing Industrial Building exterior stone wall renovation and waterproofing project	Kam Lung Seafood Restaurant, Marble Garden kitchen and platform waterproofing works	Pine Villa, 1 Yung Ping Path, Kau To Shan 102 exterior roof wall waterproofing project
Block 6, Rui Pai Yuan stairs renovation paint and waterproofing works	Marble Garden platform waterproofing works	751 A-C Nathan Road Kwun Ngan House roof waterproofing project
27-32 Catchick Street, Sai Wan fire rated doors/ package fire boards/ waterproofing project	13 Aberdeen Street, Central rooftop unit waterproofing project	16-20 Broom Road, Happy Valley waterproofing works
Amoy Food Limited, Tai Po Industrial Estate iron window maintenance project	23-29 Fung Tak Street residential fire equipment engineering works	Harbour View Tower, 101 Wai Yip Street, Kwun Tong renovation works
20-22 La Salle Road, Kowloon Tong roof waterproofing project	Cannon Garden, 62-68 King’s Road, North Point waterproofing project	Lockhart House, Wan Chai non- emergency equipment engineering
Citic Tower, Central installation of fire board works
